YJP Series

Quick-coupler



ITEM
Unit
YJP600
Application Model
Overall Length(L)
mm
560 ~ 585
SOLAR 50, SOLAR 55V, SOLAR 50W-W, SOLAR 55W-VGP, SOLAR 38, EC55, MX3W, MX55, ROBEX 500, ROBEX 550-3A, ROBEX 555, ROBEX 555-7, ROBEX80W, SE 40W, HE50A, TEREX 820
Overall Height(H)
mm
280 ~ 295
Overall Width(W)
mm
260 ~ 295
Installation Length(L1)
mm
240 ~ 300
Mounting Length(L2)
mm
240 ~ 300
Height Between Axeles(H1)
mm
175 ~ 180
Installation Width(W1)
mm
150 ~ 180
Pin Diameter(Φ)
mm
45 ~ 50

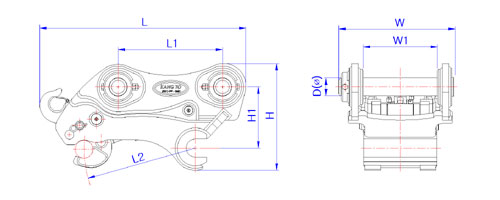

Reference DWG.
