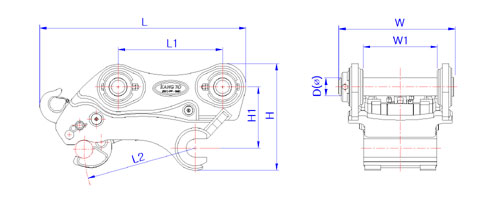

Reference DWG. |  |
PRODUCTS
We bring innovations to your excavators.
YJP Series (PUSH TYPE)
Quick-coupler
ITEM | Unit | YJP200 | Application Model |
Overall Length(L) | mm | 340 ~ 475 | PC 10-2, S 030, HX 15SR, EX 50, R 55W-3, EX 60-5, SK 050, CAT 320, R 200W-7, EX 220LC, SK 250LC, PC 220LC-7, EX 450-5, PC 450, CAT 426B, CAT 420D |
Overall Height(H) | mm | 235 ~ 270 | |
Overall Width(W) | mm | 200 ~ 235 | |
Installation Length(L1) | mm | 85 ~ 285 | |
Mounting Length(L2) | mm | 85 ~ 245 | |
Height Between Axeles(H1) | mm | 160 ~ 170 | |
Installation Width(W1) | mm | 100 ~ 150 | |
Pin Diameter(Φ) | mm | 25 ~ 45 |
