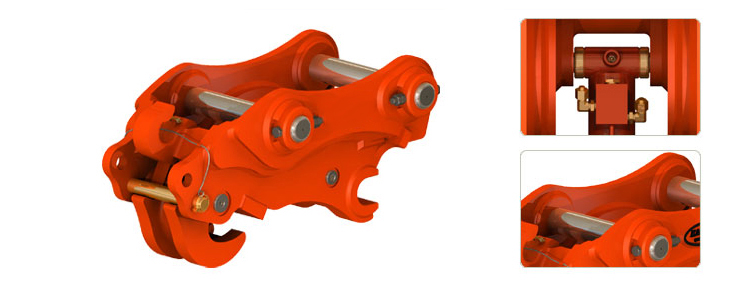

YJ Series (PULL TYPE)
Quick-coupler
ITEM | Unit | YJ600 | Application Model |
Overall Length(L) | mm | 762~875 | PC 10-2, S 030, HX 15SR, EX 50, R 55W-3, EX 60-5, SK 050, CAT 320, R 200W-7, EX220LC, SK 250LC, PC 220LC-7, EX 450-5, CAT 426B, CAT 420D, SK 460 |
Overall Height(H) | mm | 388~397 | |
Overall Width(W) | mm | 383~443 | |
Installation Length(L1) | mm | 380~487 | |
Mounting Length(L2) | mm | 85~245 | |
Height Between Axeles(H1) | mm | 231~241 | |
Installation Width(W1) | mm | 251~280 | |
Pin Diameter(Φ) | mm | 50~70 |
