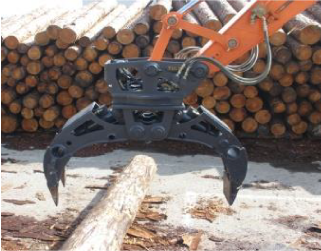

Wood Grapple


Rotating like holdings things by own hands, outstanding performance at the

forest preserve place and logging place, especially on loading and carrying things





    1) FEATURE

  • Outstanding performance on loading at the logging place
  • During the swing work, it prevents the grabbed material form falling down by grabbing more safely even when the machine is stopped

  • Equipped counter-turning device

SECTION
UNIT
HWG-W04
HWG-W06
HWG-W08
HWG-W10
Max jaw openingmm1450175022002500
Operating fluxlpm50 ~ 10090 ~ 110100 ~ 140130 ~ 170
Cylinder volumeton4.5x28.0x29.7x212.0x2
Oil pressureKg/cm2120 ~ 160 150 ~ 170160 ~ 180160 ~ 180
Set up pressureKg/cm2180190200210
Weightkg3907401380
1700
Application excavatorton7 ~ 1112 ~ 1617 ~ 23
24 ~ 30
Reference DWG.
